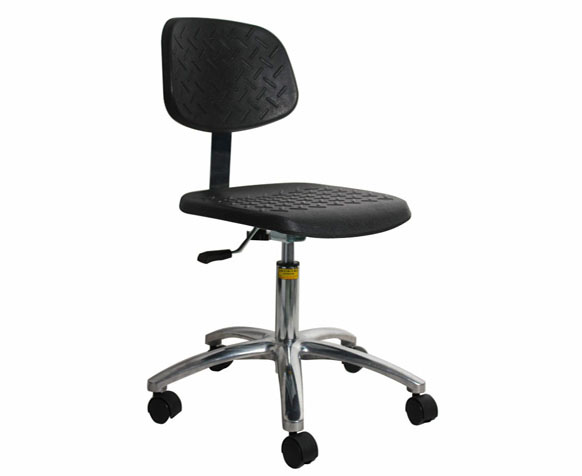

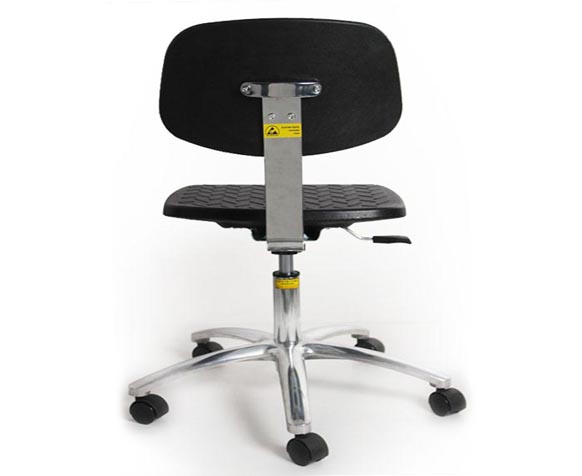

Pneumatic Lift Foam Backrest Chair HOYATO-C-5061

web:www.hoyato.com name:Shenzhen Hoyato Protective Supplies Co.,Ltd

HOYATO-C-5061

Pneumatic Lift Foam  Backrest Chair
  产品特点
1. Functions of electrostatic discharge.
2. Purification level up to 1000 degree.
3. Seat surface with steel pressure pattern,better
anti-skid effect, ventilation and comfortable.
4. 360 degree rotation.
5. Long life lifting gas spring
6. Pentapod match either castor or foot pad, castor added up to mobility ;  Foot pad is convinient to fix the chair.
7. Pedal ring for your option
  产品参数

项目 Item

型号:HOYATO-C-5061



A椅面 Seat

椅面 Seat材质 Material

PU聚酯发泡 PU Polyester Foam



坐垫尺寸 Cushion Size

宽 Width410 深 Depth400mm



靠背尺寸 Backrest Size

宽 Width360 250mm

B底盘 Chair Chassis

材质 Material

优质冷轧钢板冲压成型 High Quality Cold Rolling Steel Plate Ramming Formation



功能 Function

椅背回力/椅背上下调节

Backrest Return/

Backrest Up&Down Adjustment

C气杆 Gas Spring

调节行程 Route Adjustment

400~540mm



升降方式 Lift Manner

气动升降 Pneumatic Lift



D脚踏 Footstool

材质 Material





表面处理 Surface Treatment





直径 Diameter

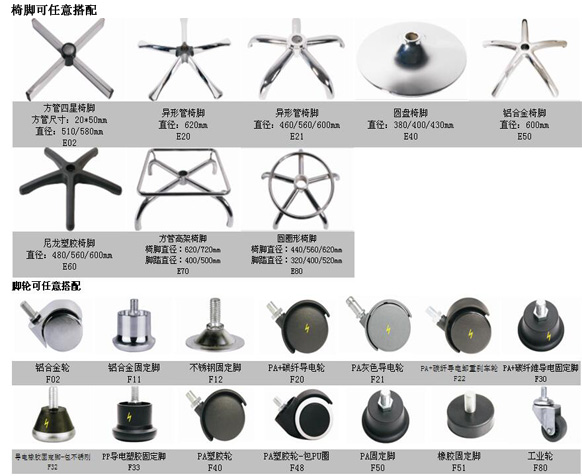

E椅脚 Chairfoot

材质 Material

铝合金压铸成型 Aluminium Alloy Die-Casting Molding



表面处理 Surface Treatment

表面抛光 Surface Polish



直径 Diameter

600mm

F脚轮 Castor

材质 Material

PA尼龙塑胶 PA Nylon Plastic



类型 Type

脚轮或固定脚 Castor or Fixed Ends

K脚架 Pentapod

管型 Cast





尺寸 Size



标配编号 The Standard No.



AF08+B03+CQ14+E50+F40



防静电无尘版本 Antistatic Dustless Version

脚轮材质 Castor Material

导电纤维+PA尼龙塑胶(2+3组合)Conductive Fiber + PA Nylon Plastic2+3pairs



体积电阻 Vol. of Resistance

106~109欧姆 ohms

  主要用途
ESD PU chair can be used in the fields of Microelectronics, optical, aerospace, aviation and electrostatic sensitive areas
