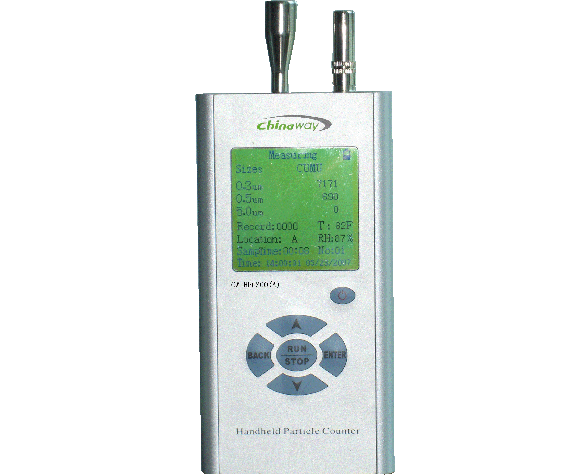

CW-HPC300(A) Handheld Three Channels Laser Airborne Pparticle Counter
1. User can set three channel particle size arbitrary to sampling and analyze.
2. Sampling mode: cumulative / difference / concentration / average.
3. As many as 500 groups (sub) measurement data memory.
4. Automatic timing sampling and overrun alarm.
5. USB/RS-232 interface data download and software upgrade.
6. Built-in temperature and external humidity sensors to ensure the accuracy of the test.
Main Performance Index
Test Particle Size: 0.3, 0.5, 5 m (the user can be in 0.5, 0.7., 1, 2 between the custom particle size to be measured)
Light Source: laser diode (life more than 100000 hours)
Consistency Loss: when 2000000 particles per cubic foot is less than 5%
Flow: 2.83 L / min (0.1cfm)
Counting Efficiency: 100 + 10%A0.5 mu m
Verification Standard: JIS-B-9921 (1997), ASTM-F649-01, ASTM-F328-98 (NIST traceability)
Sampling Time: user self setting (1 second to 59 minutes 59 seconds)
Sampling frequency: 1 to 99 times or continuous
Alarm Level: 1 ~ 100000 (FED209E standard) or 2 ~ 9 (ISO14464-1 standard)
Test Methods: single / repeat / continuous / time / average
Data Memory Capacity: 1000 groups (sub) or 3000 measurement data
Error Indication: Exceed the maximum count, laser power attenuation, more than the calibration flow (> + 5%), battery power shortage
Purification Time: less than 5min
Connecting Port: USB, RS-232
Maximum Communication rate: 12MBPS
Print function: built-in thermal printer
Electric source: rechargeable Ni-MH battery (6V/3000mAH) or 220V AC power supply (100 ~ 240V)
Battery working time: continuous test time is greater than 6 hours
Outline dimensions: 180 (W) * 210 (D) * 120 (H) mm
Weight: less than 3500 grams (including battery)
Environmental conditions: working environment 5 ~ 45 degrees C, < 90%RH
Storage environment: -20 ~ 60 degrees C, < 90%RH
Standard Accessories: operating instructions; calibration certificate, AC charging adapter, hose, accurate sampling and other power sampling head, application software installation disc, the use of manual.
1. Indoor environment testing
2. Filter efficiency test and analysis
3. Analysis and inspection of pollution sources
4. Particle size distribution analysis
