Current location: Home > Industrial Chair > Shenzhen Hoyato Protective Supplies Co.,Ltd >Pneumatic Lift Foam Backrest Chair HOYATO-C-5041

Pneumatic Lift Foam Backrest Chair HOYATO-C-5041 name:Shenzhen Hoyato Protective Supplies Co.,Ltd

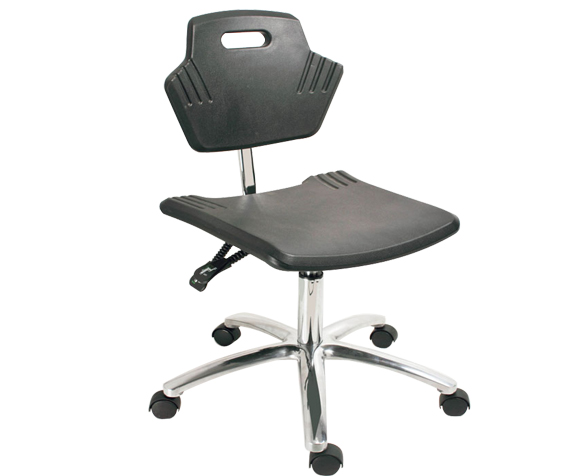

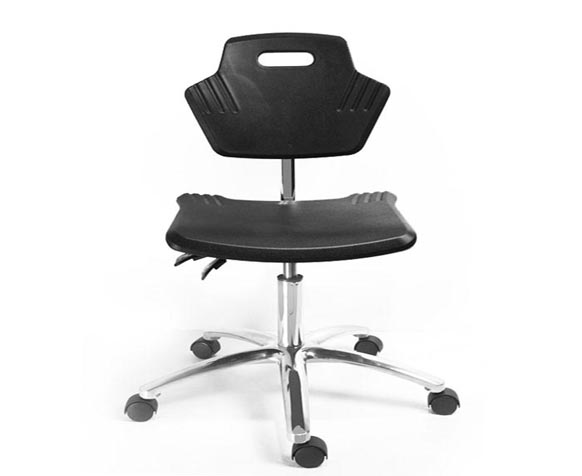

Pneumatic Lift Foam Backrest Chair
1.The material being used contains no S, NH + 3, Hg, Pb and other harmful materials, which is harmless to human body.
2. Novel structure, simple and convenient to adjust the height through oilless gas spring
3.Castor is made of carbon fiber PC with high strength and high impact resistance, resistance to fission, wear-resisting and corrosion resistance performance
4. Pentapod cover structure make the stress to the ground even, long-term use of deformation,  people will not fall off the chair under 30 degree away from gravity center.
5. Equipped with pedal ring, more convinient to operate
6. Damaged assembly unit can be changed, no need to throw away the chair completely.

项目 Item



A椅面 Seat

椅面 Seat材质 Material

PU聚酯发泡 PU Polyester Foam


坐垫尺寸 Cushion Size

宽 Width450 深 Depth430mm


靠背尺寸 Backrest Size

宽 Width400  Height 310mm

B底盘 Chair Chassis

材质 Material

优质冷轧钢板冲压成型 High Quality Cold Rolling Steel Plate Ramming Formation


功能 Function

椅背倾仰调节/椅背上下调节 Backrest Lean Back Adjustment/Backseat Up& Down Adjustment

C气杆 Gas Spring

调节行程 Route Adjustment



升降方式 Lift Manner

气动升降 (通过美国BIFMA安全耐久测试认证) Pneumatic Lift (Certified by the American BIFMA Safety Durability Test)


D脚踏 Footstool

材质 Material



表面处理 Surface Treatment



直径 Diameter

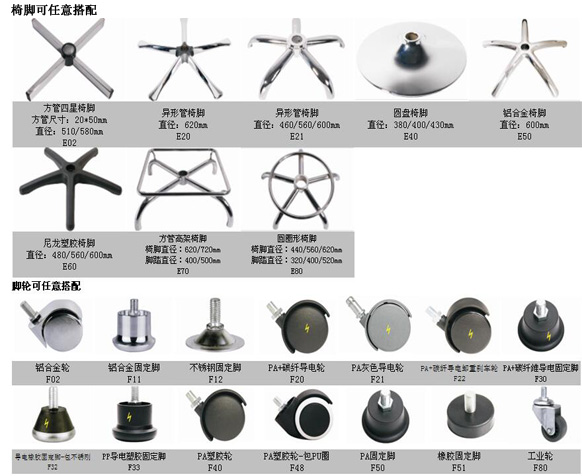

E椅脚 Chairfoot

材质 Material

铝合金压铸成型 Aluminium Alloy Die-Casting Molding


表面处理 Surface Treatment

表面电镀 Chrome on the surface


直径 Diameter


F脚轮 Castor

材质 Material

PA尼龙塑胶 PA Nylon Plastic


类型 Type

脚轮或固定脚 Castor or Fixed Ends

KHOYATO-C-5048脚架 Pentapod

管型 Cast



尺寸 Size


标配编号 The Standard No.


AF03+B13+CQ14 +E50+F40


防静电无尘版本 Antistatic Dustless Version

脚轮材质 Castor Material

导电纤维+PA尼龙塑胶(2+3组合)Conductive Fiber + PA Nylon Plastic2+3pairs


体积电阻 Vol. of Resistance

106~109欧姆 ohms

ESD PU chair can be used in the fields of Microelectronics, optical, aerospace, aviation and electrostatic sensitive areas
