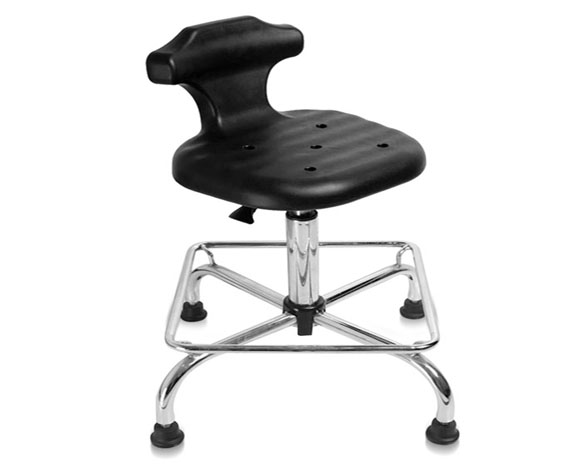

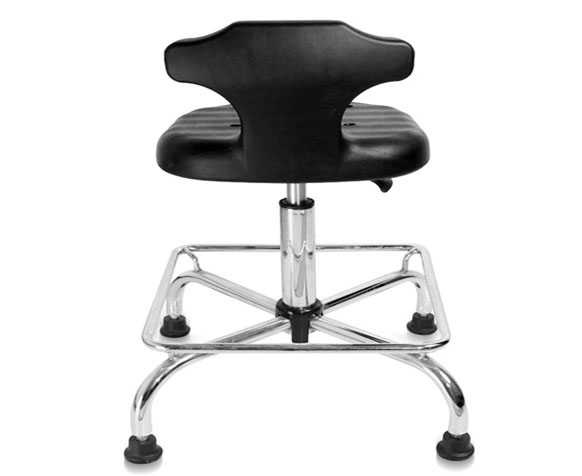

ESD PU Foaming Booster Chair HOYATO-C-5023

web:www.hoyato.com name:Shenzhen Hoyato Protective Supplies Co.,Ltd


ESD PU Foaming Booster Chair
HOYATO-C-5023
  产品特点
1.The material being used contains no S, NH + 3, Hg, Pb and other harmful materials, which is harmless to human body.
2. Novel structure, simple and convenient to adjust the height through oilless gas spring
3.Castor is made of carbon fiber PC with high strength and high impact resistance, resistance to fission, wear-resisting and corrosion resistance performance
4. Pentapod cover structure make the stress to the ground even, long-term use of deformation,  people will not fall off the chair under 30 degree away from gravity center.
5. Equipped with pedal ring, more convinient to operate
6. Damaged assembly unit can be changed, no need to throw away the chair completely.
  产品参数

项目 Item

型号:HOYATO-C-5023



A椅面 Seat

椅面 Seat材质 Material

PU聚酯发泡 PU Polyester Foam



坐垫尺寸 Cushion Size

宽 Width360 深 Depth320mm



靠背尺寸 Backrest Size

宽 Width290  Height 190mm

B底盘 Chair Chassis

材质 Material

优质冷轧钢板冲压成型 High Quality Cold Rolling Steel Plate Ramming Formation



功能 Function

方形 Square加固

C气杆 Gas Spring

调节行程 Route Adjustment

460~600mm



升降方式 Lift Manner

气动升降 Pneumatic Lift



D脚踏 Footstool

材质 Material

优质冷轧钢管 High Quality Cold Tube Rolling



表面处理 Surface Treatment

表面电镀 Chrome on the surface



直径 Diameter

400mm



E椅脚 Chairfoot

材质 Material

优质冷轧钢管冲压成型 High Quality Cold Tube Rolling Ramming Formation



表面处理 Surface Treatment

表面电镀 Chrome on the surface



直径 Diameter

620mm

F脚轮 Castor

材质 Material

PA尼龙塑胶 PA Nylon Plastic



类型 Type

脚轮或固定脚 Castor or Fixed Ends

K脚架 Pentapod

管型 Cast





尺寸 Size



标配编号 The Standard No.



AF30+B50+CQ14 +E70+F50



防静电无尘版本 Antistatic Dustless Version

脚轮材质 Castor Material

导电纤维+PA尼龙塑胶 PA Nylon Plastic2+2组合)



体积电阻 Vol. of Resistance

106~109欧姆 ohms

  主要用途
ESD PU chair can be used in the fields of Microelectronics, optical, aerospace, aviation and electrostatic sensitive areas
