Anti Static PCB Turnover Vehicle HOYATO-C-6022 name:Shenzhen Hoyato Protective Supplies Co.,Ltd

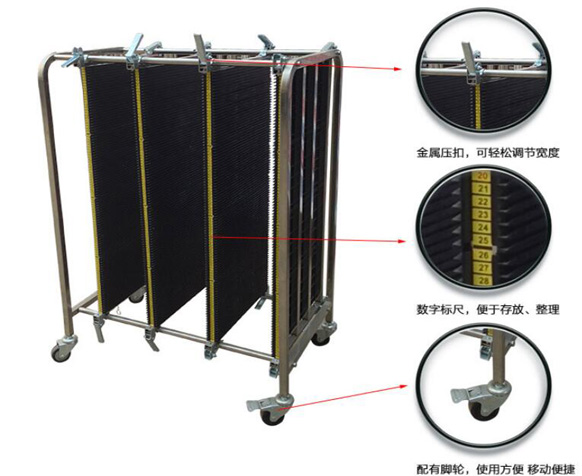

Anti Static PCB Turnover Vehicle
Antistatic, easy to operate and convinient to adjust, light wight, very convinient to move.

Surface resistance: 10 times to 9 times.
Outline size: 900*450*1300MM
The stainless steel outer pivot plastic board and can be customized to any specification of surface resistance: 104-106 ohm
Storage: three columns, each column can be placed 100 pieces
Guide slot: flat insert
Slot width: 5mm, slot depth: 5mm, slot length: 350mm
Total load bearing: 300kgs
Each bearing: 1Kgs
Conductive measures: conductive casters and conductive chain
Can withstand the maximum temperature: 100 degrees
Specific specifications can be customized according to customer requirements
Widely used in SMT processing, machinery, automobiles, home appliances, light industry, electronics, and other production enterprises,acid and alkali resistant, oil resistant, non-toxic and tasteless. It can be used for PCB board storage, easy to clean, convenient PCB board turnover, neatly stacked, easy to manage. Its reasonable design, excellent quality, suitable for SMT factory in the transportation, distribution, storage, circulation and processing, etc..
