KP4004A High Voltage Power Supply HOYATO-E-2082 name:Shenzhen Hoyato Protective Supplies Co.,Ltd

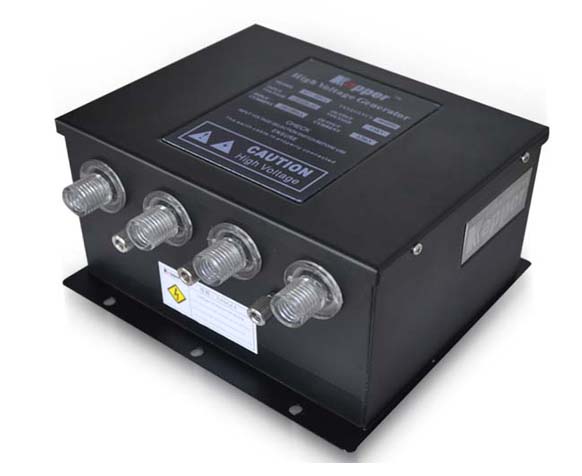

KP4004A High Voltage Power Supply
Product Features:
*Stable working performance and safe.
*Fit for wide range voltage.
*Small volume, easy to install and connect.
*Short circuit defensive function.
*Good grounding protection.

Input voltage:110/60Hz or 220V/50Hz

Input current:0.22A—0.11A

Output voltage:4.6KV/5.6KV/7.0KV*4

Output current:Max 4.5mA

Operating temperature:0-50℃



Power line length:1.8M

KP4004A high voltage power supply change the power frequency voltage into the voltage requested via high-tension transformer. Taking into account the security issues, the max output circuit current of all the power supply products should be less than 5mA. The service voltage of the power reply can be 110V or 220V and be changed by a change-over switch.
