KP4003A High Voltage Power Supply HOYATO-E-2081

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

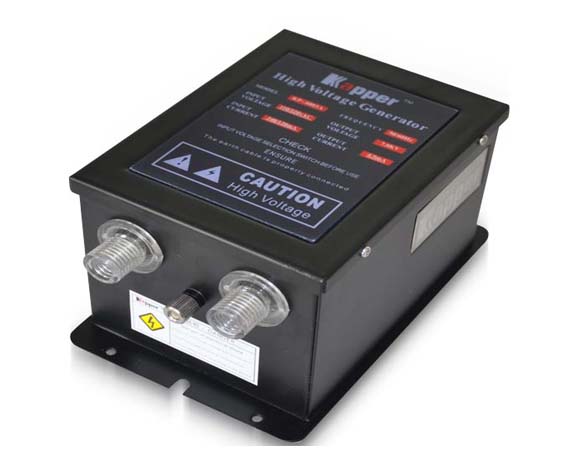

KP4003A High Voltage Power Supply
HOYATO-E-2081

产品特点

Product Features:

*Stable working performance and safe.

*Fit for wide range voltage.

*Small volume, easy to install and connect.

*Short circuit defensive function.

*Good grounding protection.

产品参数

Working Voltage：110V/60HZ or 220V/50Hz

Input current:0.29A-0.17A

Ambient temperature:0-50℃

output voltage:7.0KV*2

output current:Max 4.5mA

Size:170(L)mm×100(W)mm×95(H)mm

Weight:2.5Kg

Power line length：1.8M

主要用途

KP4003A high voltage power supply change the power frequency voltage into the voltage requested via high-tension transformer. Taking into account the security issues, the max output circuit current of all the power supply products should be less than 5mA. The service voltage of the power reply can be 110V or 220V and be changed by a change-over switch.
