KP3002C Inductive Ion Wind Serpent(Power Supply is need) HOYATO-E-2097

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

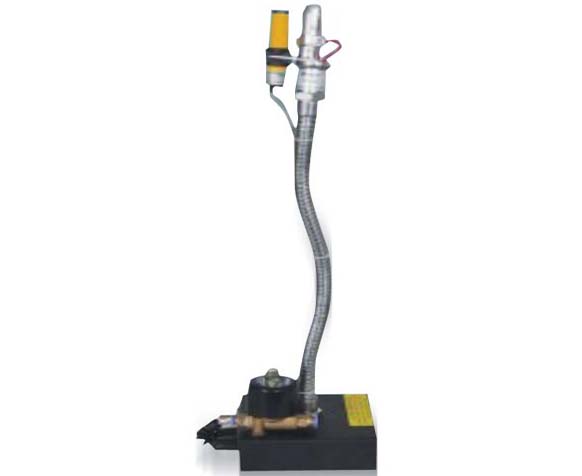

KP3002C Inductive Ion Wind Serpent(Power Supply is need)
HOYATO-E-2097

产品特点

Inductive ionizing air snake is a specialized static-eliminating device which produce ion air flow via compressed air to eliminate static electricity. Inductive ionizing air snake is the device which used infrared ray to sense and eliminate static electricity, you can move the snake tube by hand to any target body surface. Outside and built-in high voltage generator and the fuselage in one, which is easy to move and put in all kinds of working areas. It has been widely used in the industries like precision electronic products, electronic assembly line, pharmaceutical manufacturing and so on.

Product features:

1. Small size and light body, eliminating static electricity rapidly.

2. Can add adjustment value and adjust

3.2. Adjusting value can be added, air volume can be adjusted discretionarily.

3. The snake tube can be rotated to make the wind nozzle point to the target position, it can make the ion air directly blowing to the target surface without manual operation.

产品参数

Input Voltage:4.6kw

Current Consuming:0.35A

Weight: 1.6kg

Length of Hose:39m

Compressed Air Pressure:50-70psi

Airflow Velocity: 10m/sec

Compressed air flow：

0.8 S CFM at 10 PSI 5.5 S

5.5 S CFM at 50 PSI

11.5S CFM at 100 PSI

Discharge Time（5000V-500V）：＜1.5s

(Ion balance)：0V±30V

主要用途

Mainly apply to mechanical equipment, medical equipment manufacturing packaging, electronics assembly and semiconductor manufacturing, LED manufacturing, etc.
