Two feet comprehensive test instrument HOYATO-E-2084

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

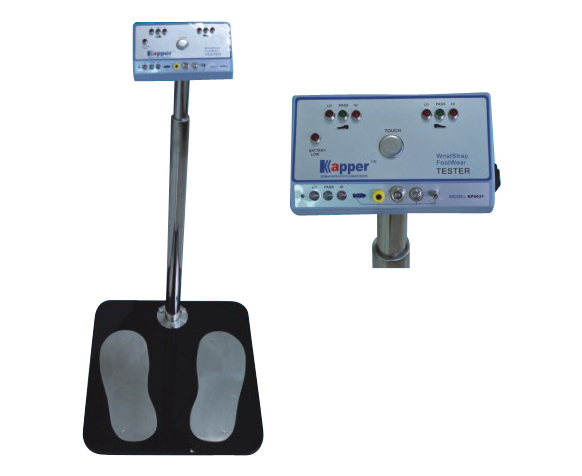

Two feet human body comprehensive test instrument
HOYATO-E-2084

产品特点

1.The product can test the ESD equipment quickly, three standalone device(wrist strap, left shoe, right shoe) can finish the test one time.

2. The three devices can show three states respectively, LO(under set value), PASS(within set value), HI(above set value), it has alarm function.

产品参数

Instrument size:166mm（L）*100mm(W)*48mm(H)

Pedal size:430mm*430mm

Active bracket adjusting distance:800+600mm

Total Weight:6.5Kg

主要用途

The product can test human body and will alarm when hunman body resistance above 750KΩ or below 105Ω, the tester equip 750KΩ-10MΩ(used to test wrist strap) and 750KΩ-100MΩ(used to test working shoes), this product is the ideal device to test wrist and working shoes. The test instrument combines a unique dual test circuit design, not only can improve the test speed, but also can replace a single wrist band test instrument.
