Non-cleanroom Laser Airborne Particle Counter HOYATO-E-3013

web：www.hoyato.com name：Shenzhen Hoyato Protective Supplies Co.,Ltd

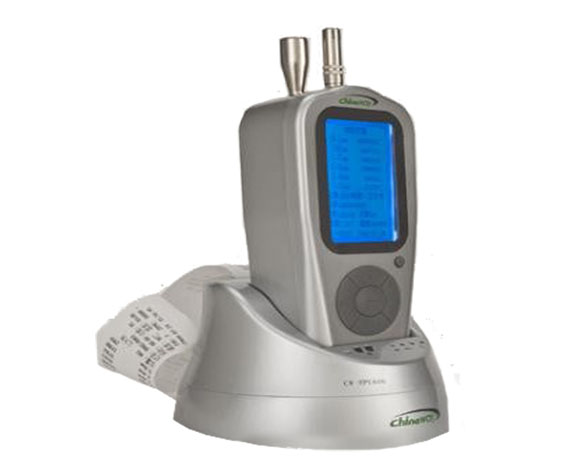

Non-cleanroom Laser Airborne Particle Counter
HOYATO-E-3013

产品特点

1. Portable functional advantages of random print charging.

2. Sampling and analyze arbitrary six particles tunnels at the same time.

3. Large screen high resolution backlight display, replaceable lithium battery.

4. Timing delayed sampling time and out of limit alarming automaticly

5. USB/RJ45/RS-232 port can be used to down load at a high speed, software upgrading and remote telemetering.

6. External temperature sensor to make the test accuracy.

产品参数

Test Particle Size: User can set between 0.3 to 5 mu m particle diameter between 0.1 M of the step size and between 5 to 25 mu m diameter according to the size of 1 m between six of the size of the channel to be measured.

Sampling Time: User self setting (1 second to 59 minutes 59 seconds)

Sampling Delay: User self setting (1 sec ~ 59 minutes 59 seconds)

Sampling Frequency: "1 to 99 times or continuous

Alarm Level: 1 ~ 100000 (FED209E standard) or 2 ~ 9 (ISO14464-1 standard)

Test Methods: single / repeat / continuous / time / average

Data Memory Capacity: 1000 groups (sub) or 6000 measurement data

Error Indication: Exceed the maximum count, laser power attenuation, more than the calibration flow (> + 5%), battery power shortage

Interface: USB, RJ45, RS232

Maximum Communication Rate: 12Mbps

Power Source: Rechargeable Li-ion lithium polymer battery (7.4V/2800mAh) or AC adapter (input: AC 100 ~ 240V, output: 9V/1A DC)

Battery Working Time: continuous test time is greater than 6 hours

External Dimensions: 93 (W) * 48 (D) * 185 (H) mm (handheld mainframe) F 152 * 97 (H) mm (base)

Weight: mainframe: about 600 grams (including battery)

Base: about 400 grams

Environment condition

Working Environment 5 ~ 45 degrees C, < 90%RH

Storage Environment: -20 ~ 60 degrees C, < 90%RH

Standard Accessories: AC adapter, such as power sampling head, portable protection box, application Software installation CD-ROM (including the use of manual)

Optional Accessories: external temperature and humidity sensors, tripod, serial print data line.

主要用途

1. Ultra clean environment detection.

2. Indoor and outdoor environment detection.

3. Filter efficiency analysis and testing.

4. Check the source of pollution analysis.

5. Particle size distribution analysis.

6.Environmental cleanliness grade determination.
